SKETCH WINDOW OVERVIEW

In Sketch, you can draw accurate graphical representations of the rooms or buildings being estimated, similar to a floor plan. When you create a drawing in Sketch, several variables are automatically calculated to save time while scoping an estimate.

• To view a Sketch, open an estimate, and click Sketch.

• To turn the Sketch panes on or off:
• 1. On the Sketch window, click Options.
  2. Click Visible Windows.
  3. Select the panes that you want to view.

• You can also click Auto hide to pin the pane(s) to the edge of the Sketch window.

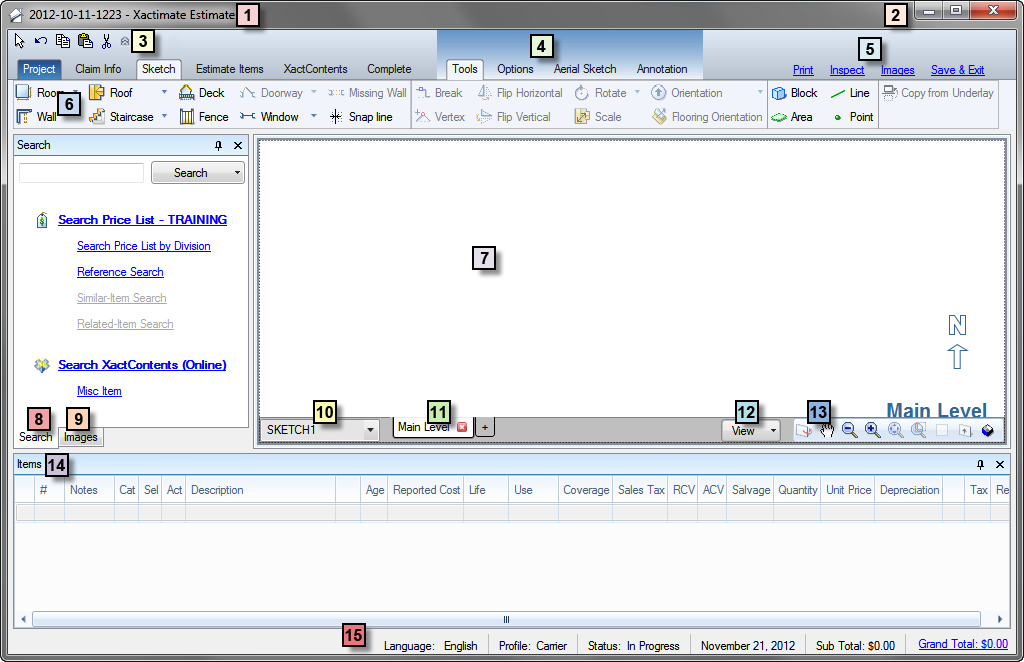

  Number	Name	Description
  	Title Bar	Displays the current Project Name, followed by the Project Type.
  	Window Controls	Minimizes, restores down, maximizes and closes the window.
  	Quick Access Buttons	Quickly performs functions such as save, print, cut, copy, and paste.
  	Sketch Tabs	Allows access to the different sketch functions.
  	Project Links	Allows you to view different windows in sketch, or save & exit.
  	Sketch Ribbon	Displays all the functions needed to create and annotate a sketch or aerial sketch.
  	Sketch Workspace	Displays the sketch currently being worked on.
  	Search Tab	Displays the various ways to search for price list items.
  	Images Tab	Displays images added to the estimate through the Digital Images window. Images can be added to the Sketch Workspace as a reference, or an underlay.
  	Sketch List	Displays a list of the sketches for the current estimate, with the options to add, delete, rename or view sketches.
  	Sketch Levels	Displays the levels for the current sketch, with the option to add or delete a level.
  	View Settings	Contains options for viewing informations such as measurements, footing, framing, annotations, and underlays on the Sketch Workspace.
  	Sketch Viewing Tools	Allows you to change zoom in, zoom out, and switch between views (floor plan, elevation and 3D).
  	Items List	Displays the current estimate items for the selected room.
  	Status Bar	Displays information about the current estimate, including profile name, status, and current grand total.  Also displays links to the inspection tool and the Summary Totals Report.
